Multi-Mode Adapters

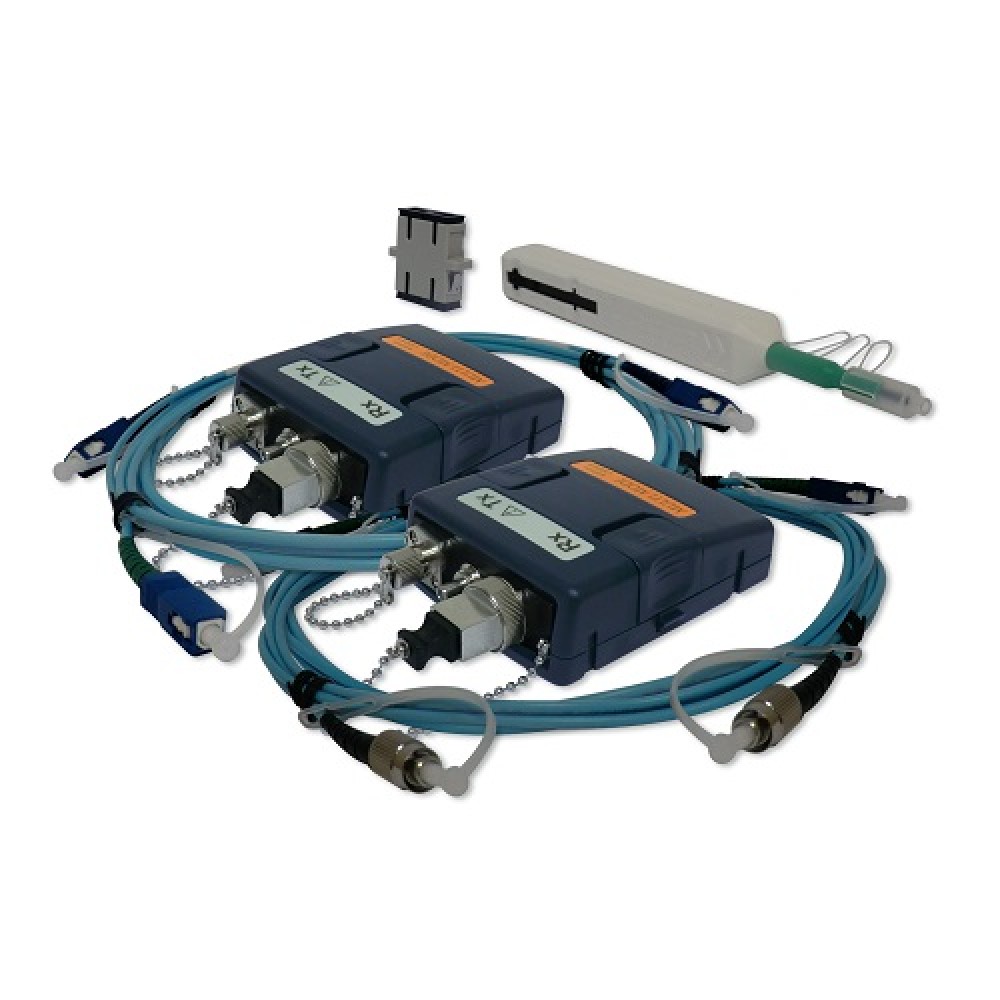

Kit, MMEF, FC SC

Kit for EF compliant MultiMode(MM) fiber testing c/w;  2x MMEF adapters with SC
& FC interfaces, 2x FC-SC modally transparent, 2x SC-SC simplex test cord, 1x SCSC
coupler, 1x Cleaning kit.

Power Meter Specifications

Input Connector	Interchangeable connector with LC, ST and SC options) Standard kit ships with SC
Detector Type	InGaAs
Wavelengths	850nm, 1300nm
Power Measurement Range	-15 dBm to -60 dBm at 850nm, -15 dBm to -70 dBm at 1300 nm
Measurement Linearity	<±0.1 dB in the power measurement range
Re-calibration Period	1 year

Loss/Length Specifications

Specification	MMEF
Input/Output Connectors	Interchangeable connector with LC, SC, ST options
Launch Condition	Encircled Flux compliant to IEC 612480-4-1
Fiber Types Tested	50/125, 62.5/125
Source Type and Wavelengths	850/1300 nm
Length Measurement Accuracy	±1.5m
Output Power (Nominal)	> -20 dBm at 850, 1300 nm
Output Power Stability	±0.02 dB after 3 minute warm up time

Visual Fault Locator (VFL)

Output Power	>-4dBm, < -1 dBm Continuous, blinking mode CW output SC connector
Operating Wavelength	650 nm
Output Modes	Pulsed, Continuous
Connector Adapter	2.5mm
Laser Safety	Class II

Environmental Specifications

Operating Temperature	0° C to 45° C
Storage Temperature	-20° C to 50 °C
Safety	EN61010
